BCM 1913 Light Mount Modular for KeyMod
Mix and match across the range: 2 items save 5%, 3 save 10%, 4 or more save 15% on your whole basket.
KeyMod handguards and forends only, on AR-15/M4 rifles including UK straight-pull AR-15 builds. Will not fit M-LOK — use the M-LOK version of this mount instead. Presents a 1913 Picatinny stub for any light with a Picatinny interface. Light not included.
Not sure it fits your rifle? Ask us before you order

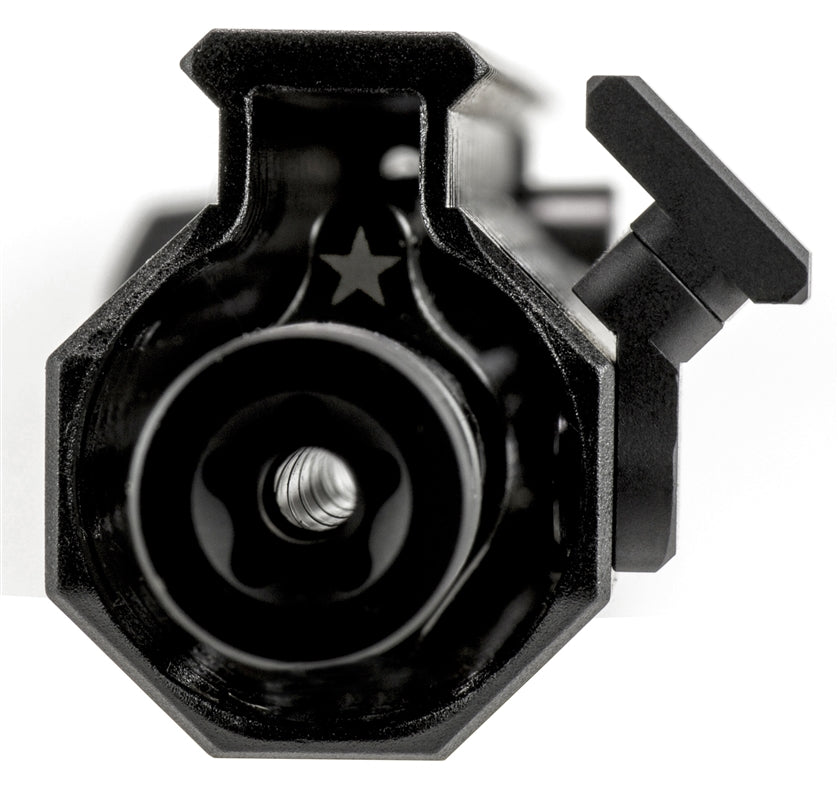

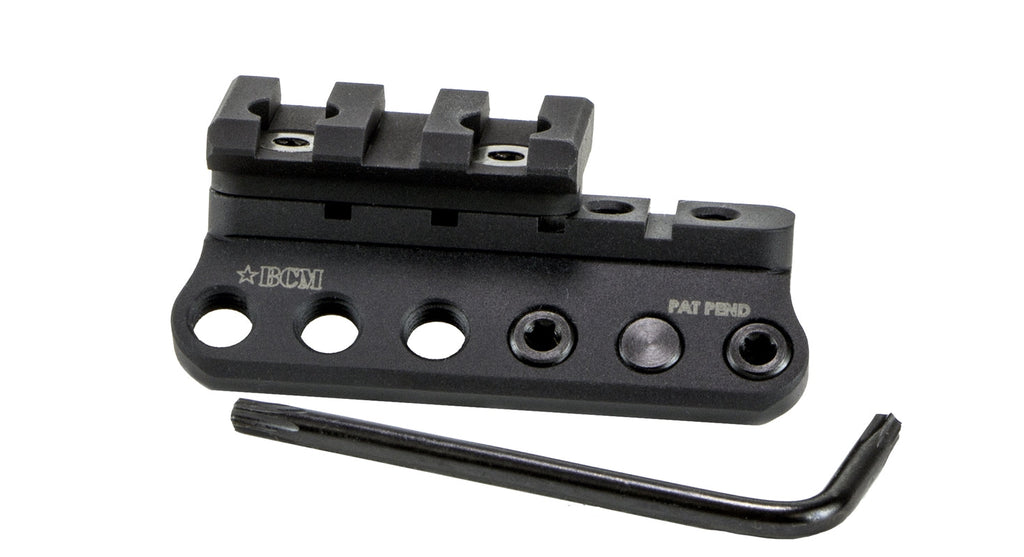

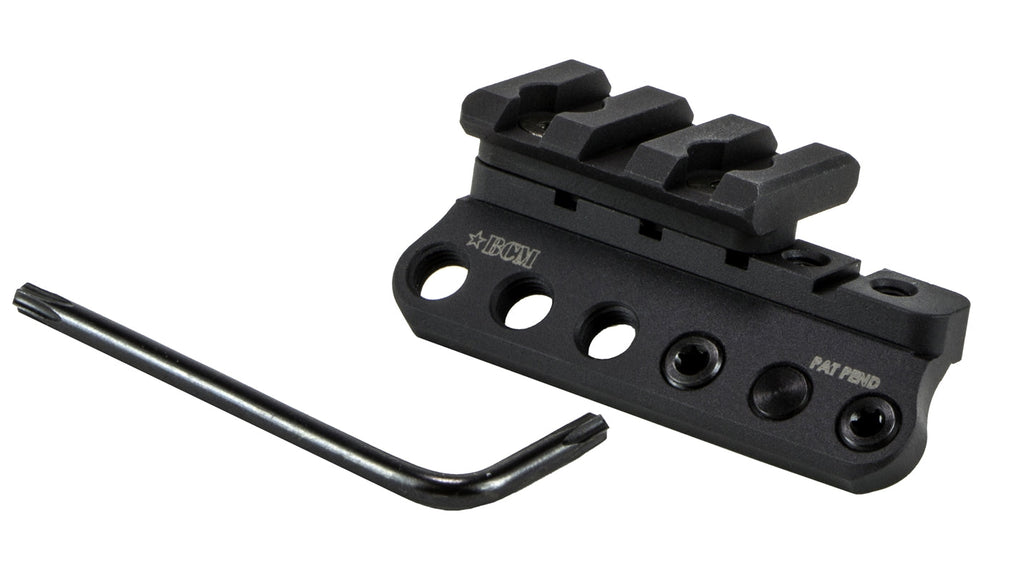

The BCM 1913 Light Mount Modular is an ambidextrous aluminium light mount for AR-15 and M4 rifles, attaching to a KeyMod handguard and presenting a 1913 Picatinny stub for a weapon light.
This is the KeyMod version. The same mount is made for M-LOK handguards — check which handguard you have before ordering.
Instead of clamping the light body, this mount provides a short 1913 Picatinny rail section at the 3 or 9 o'clock position, so it takes any light built for a Picatinny interface rather than one specific body diameter. Change the light and the mount stays on the rifle.
It is fully ambidextrous, so a single part serves either side, and it offers an optional high and low mounting position for the 1913 rail section — useful for clearing a bulky handguard or bringing the light in tight against it. The body is low-profile aluminium and weighs 0.9 oz (26 g). Fitting uses a Torx wrench with the screws tightened to 30 in-lb, and Bravo Company USA suggest blue thread-locking compound if you want the fasteners secured.
Fits KeyMod handguards and forends on AR-15/M4 rifles, including UK straight-pull AR-15 builds. This is the KeyMod version and will not attach to an M-LOK handguard — for that, order the BCM 1913 Light Mount Modular for M-LOK, which is the same mount in the other interface. Once fitted it accepts any weapon light built for a 1913 Picatinny interface. If your light has a bare body rather than a rail clamp, the BCM Modular Scout Light Mount is the KeyMod mount that grips the body directly instead. No light is included.
| Platform | AR-15 / M4 |
|---|---|
| Fits | KeyMod handguards and forends; weapon lights with a 1913 Picatinny interface |
| Type | Modular 1913 light mount, fully ambidextrous |
| Material | Aluminium |
| Weight | 0.9 oz (26 g) |
| Mount interface | KeyMod to 1913 Picatinny, 3 or 9 o'clock |
| Adjustment | Optional high and low position for the 1913 rail section; Torx fasteners to 30 in-lb |
| Brand | Bravo Company USA |
| MPN | BCM-1913LM-KM |
One mount, any Picatinny light, either side of the rifle. Order the BCM 1913 Light Mount Modular for KeyMod today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
Explore more: AR-15 Parts & Accessories, Bipods & Mounts or browse all Bravo Company USA.
| Platform | AR-15 / M4 |
|---|---|
| Fits | KeyMod handguards and forends; weapon lights with a 1913 Picatinny interface |
| Type | Modular 1913 light mount, fully ambidextrous |
| Material | Aluminium |
| Weight | 0.9 oz (26 g) |
| Mount interface | KeyMod to 1913 Picatinny, 3 or 9 o'clock |
| Adjustment | Optional high and low position for the 1913 rail section; Torx fasteners to 30 in-lb |
| Brand | Bravo Company USA |
| MPN | BCM-1913LM-KM |
| Category | Light Mount |
| Barcode | 812526020321 |
£5 tracked UK delivery on every order via Royal Mail Tracked 24. Our products are ordered in from the manufacturer rather than held in UK stock, so please allow 7 to 10 business days (Monday to Friday, excluding bank holidays) from the date of your order for it to reach you. Tracking details are emailed on dispatch. UK delivery only.
You have 30 days from receiving your order to cancel it for any reason, then 14 days to send it back unused and in its original packaging. Faulty, damaged or incorrect items are replaced or refunded and we cover reasonable return postage. Refunds go back to your original payment method within 14 days of receiving the return.
This is the KeyMod version. The same mount is made for M-LOK handguards as the <a href="/products/bcm-1913-light-mount-modular-m-lok">BCM 1913 Light Mount Modular for M-LOK</a>. KeyMod slots have a round keyhole at one end; M-LOK slots are plain rectangles. Check your handguard before ordering — the two are not interchangeable.
The 1913 rail section can be fitted in either a high or a low position. Low brings the light in tight against the handguard for the slimmest possible package; high lifts it clear, which helps on a bulky handguard or when a light head would otherwise foul the rail.
Any weapon light built to clamp onto a 1913 Picatinny rail. Because the mount presents a rail rather than gripping the light body, it is not tied to one light diameter and it stays on the rifle when you change lights.
Bravo Company USA specify 30 in-lb on the Torx fasteners, and suggest blue thread-locking compound if you want them secured against vibration. Re-check the fasteners after the first session.
Parts are sent from the United Kingdom with £5 tracked UK delivery in 7–10 business days, and tracking is emailed to you when the parcel ships. If a part turns out to be the wrong fit, see our returns policy or <a href="/pages/contact">contact us</a> and we'll help sort it.
7 to 10 business days from the date of your order. Every order is sent Royal Mail Tracked for a flat £5 and you receive tracking details by email when it is dispatched.
Yes. We list only genuine parts and optics from the brands shown, ordered in from the manufacturer for your order.
Compatibility notes on this page come from the manufacturer. If you are unsure, email us with your make and model before ordering and we will check rather than guess.
Yes. Bundle & Save applies automatically in your basket: 5% off when you buy 2 items, 10% off at 3 items and 15% off at 4 or more. It works across the whole range, so you can mix and match, and there is no code to enter.
Yes — you have 30 days from delivery to cancel for any reason, as long as the item is unused and in its original packaging. See our returns policy for the details.
