Daniel Defense Offset Flashlight Mount for Picatinny
Mix and match across the range: 2 items save 5%, 3 save 10%, 4 or more save 15% on your whole basket.
Fits any MIL-STD-1913 Picatinny rail on AR-15/M4 rifles, including UK straight-pull AR-15 builds. Accommodates 1" (25.4 mm) flashlight bodies; Daniel Defense sells separate .915" and .835" reducing inserts, not included. Designed to be used with a vertical foregrip on the bottom rail; fits either side rail for left- or right-handed use.
Not sure it fits your rifle? Ask us before you order

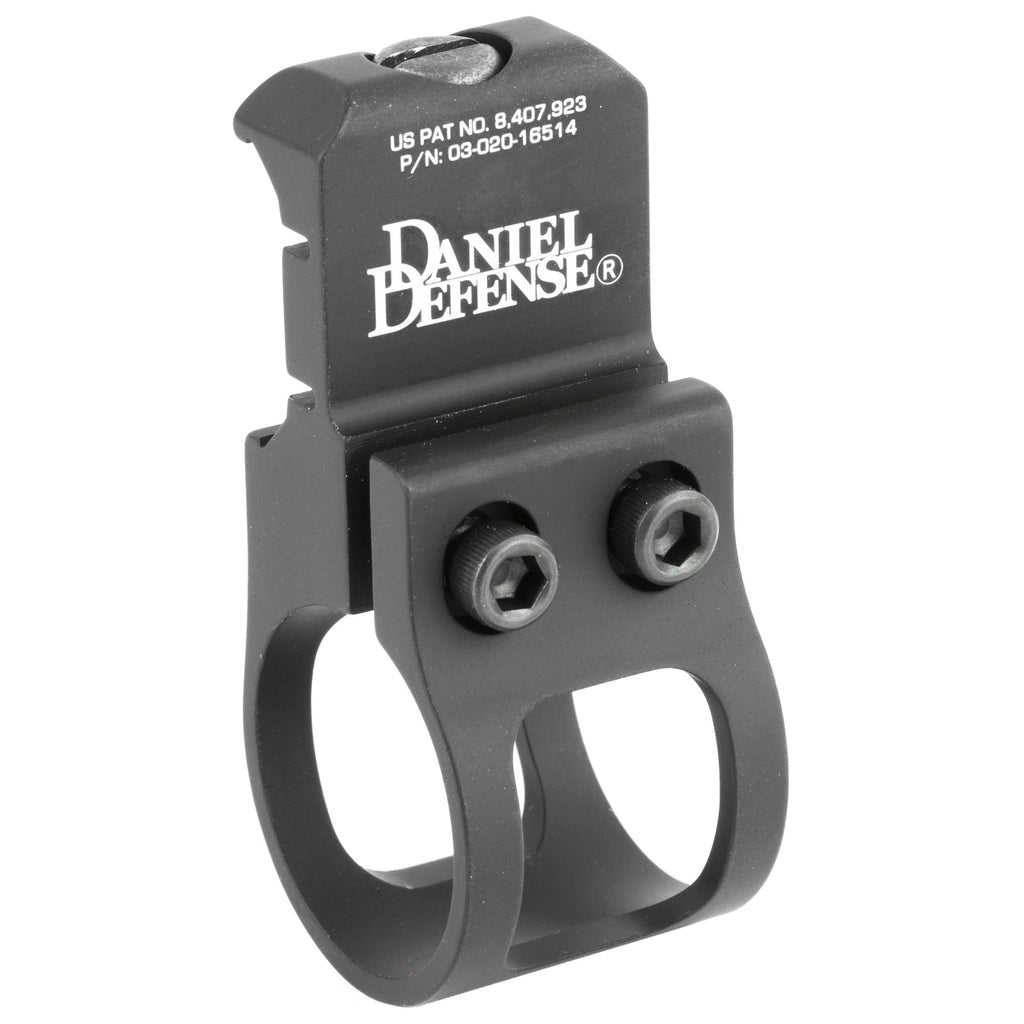

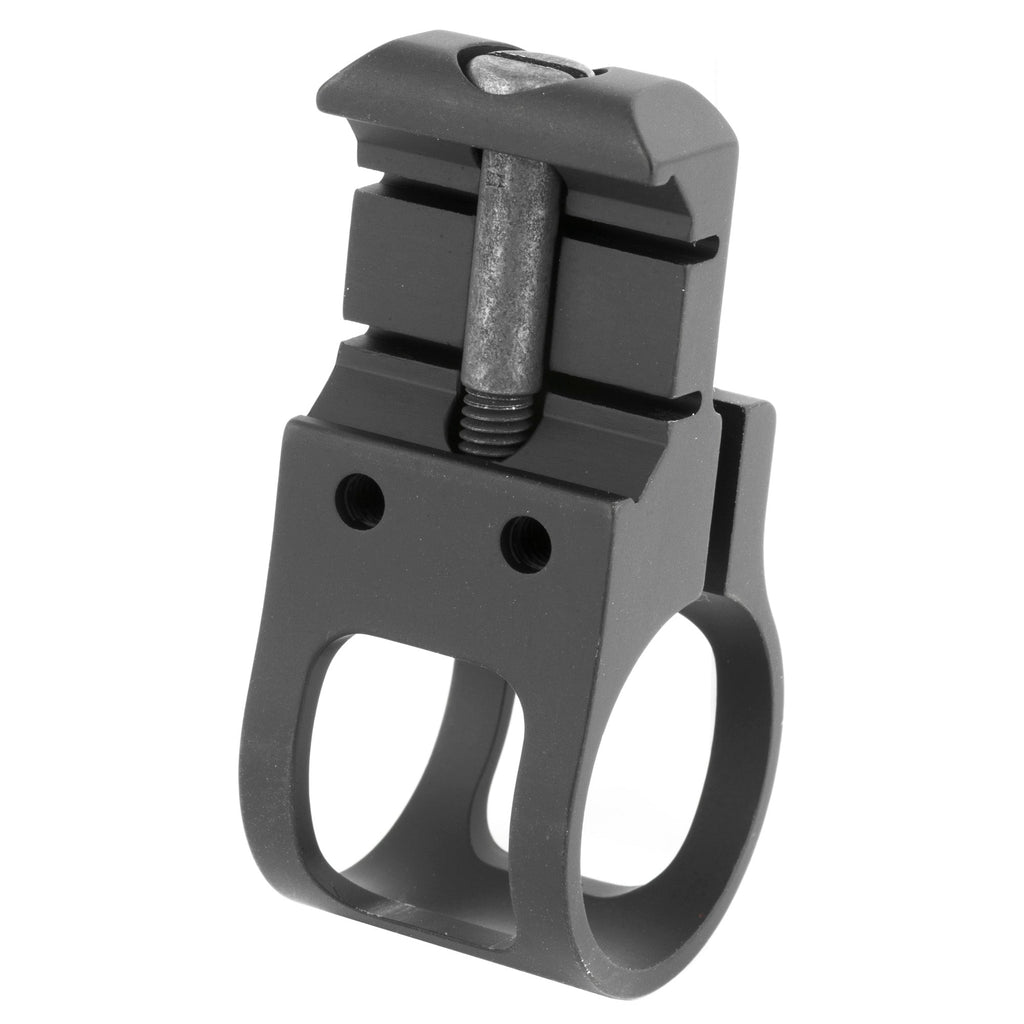

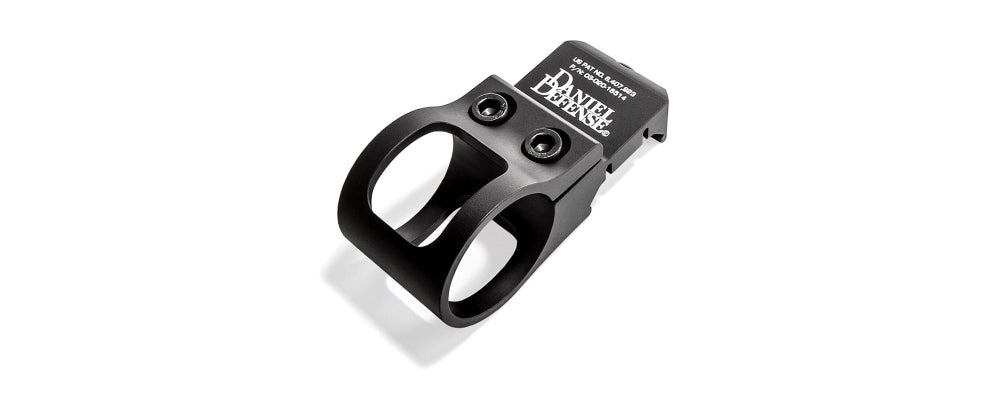

The Daniel Defense Offset Flashlight Mount is a Rock & Lock offset light mount for 1" (25.4 mm) flashlight bodies, clamping to any Mil-Std 1913 Picatinny rail.
Put the light where your thumb already is — an offset mount designed around a vertical foregrip, not bolted on beside one.
The idea is simple and it works. Fit a vertical foregrip on the bottom rail, put this mount on either side rail, and the light's tailcap lands exactly where your support thumb sits. In Daniel Defense's own words, as the shooter's forward hand grips the vertical foregrip, his thumb has quick and perfect access to the rear button of his flashlight.
The second benefit is the one nobody advertises: it eliminates many accidental light discharges, because although the action to the on/off button is quick and natural, it is also deliberate. A light that switches itself on in the bag or against your kit is a real problem, and geometry solves it better than discipline does.
The mount is precision CNC machined from 6061-T6 aluminium and Hard Coat Type III Mil-Spec anodised black, and it uses Daniel Defense's patented Rock & Lock one-piece mounting system, which simplifies installation on MIL-STD-1913 Picatinny rails. It weighs 1.3 oz (37 g) and is made in the USA. Because it fits either side rail, the same part serves left- and right-handed shooters.
Fits any MIL-STD-1913 Picatinny rail — a quad rail, or a rail section added to an M-LOK or KeyMod handguard — on AR-15/M4 rifles including UK straight-pull AR-15 builds. The mount accommodates 1" (25.4 mm) diameter flashlight bodies; Daniel Defense sells separate reducing inserts in .915" and .835" for slimmer lights, which are not included here. It is intended to be used alongside a vertical foregrip on the bottom rail, which is what puts the tailcap under your thumb, and it can be fitted on either side rail for left- or right-handed use.
| Platform | AR-15 / M4, and any MIL-STD-1913 rail |
|---|---|
| Fits | 1" (25.4 mm) flashlight bodies |
| Type | Offset flashlight mount, Rock & Lock |
| Material | 6061-T6 aluminium |
| Finish | Hard Coat Type III Mil-Spec anodised, black |
| Weight | 1.3 oz (37 g) |
| Mount interface | Patented Rock & Lock one-piece mount to MIL-STD-1913 Picatinny |
| Made in | USA |
| Brand | Daniel Defense |
| MPN | 03-020-16514 |
The light, exactly where your thumb lands. Order the Daniel Defense Offset Flashlight Mount today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
Explore more: AR-15 Parts & Accessories or browse all Daniel Defense.
| Platform | AR-15 / M4, and any MIL-STD-1913 rail |
|---|---|
| Fits | 1" (25.4 mm) flashlight bodies |
| Type | Offset flashlight mount, Rock & Lock |
| Material | 6061-T6 aluminium |
| Finish | Hard Coat Type III Mil-Spec anodised, black |
| Weight | 1.3 oz (37 g) |
| Mount interface | Patented Rock & Lock one-piece mount to MIL-STD-1913 Picatinny |
| Made in | USA |
| Brand | Daniel Defense |
| MPN | 03-020-16514 |
| Category | Light Mount |
| Barcode | 852548002097 |
£5 tracked UK delivery on every order via Royal Mail Tracked 24. Our products are ordered in from the manufacturer rather than held in UK stock, so please allow 7 to 10 business days (Monday to Friday, excluding bank holidays) from the date of your order for it to reach you. Tracking details are emailed on dispatch. UK delivery only.
You have 30 days from receiving your order to cancel it for any reason, then 14 days to send it back unused and in its original packaging. Faulty, damaged or incorrect items are replaced or refunded and we cover reasonable return postage. Refunds go back to your original payment method within 14 days of receiving the return.
It accommodates 1" (25.4 mm) diameter flashlight bodies, which covers most rail-mounted weapon lights of the Scout Light class. Daniel Defense makes separate reducing inserts in .915" and .835" for slimmer bodies; those are sold on their own and are not supplied with this mount.
So the tailcap ends up under your support thumb when a vertical foregrip is fitted to the bottom rail. Daniel Defense's own description is that as the forward hand grips the vertical foregrip, the thumb has quick and perfect access to the rear button. It also reduces accidental activation, because reaching the button is natural but deliberate.
Not directly — this is a Picatinny mount. On an M-LOK or KeyMod handguard you would fit a rail section first and clamp the mount to that. On a quad rail it goes straight onto either side rail.
Yes. The same part mounts on either side rail, so it works for either hand; you simply choose the side.
Light mounts are dispatched from the United Kingdom with £5 tracked UK delivery in 7–10 business days, and you'll get tracking by email when it ships. If a part turns out to be the wrong fit, see our returns policy or <a href="/pages/contact">contact us</a> and we'll help sort it.
7 to 10 business days from the date of your order. Every order is sent Royal Mail Tracked for a flat £5 and you receive tracking details by email when it is dispatched.
Yes. We list only genuine parts and optics from the brands shown, ordered in from the manufacturer for your order.
Compatibility notes on this page come from the manufacturer. If you are unsure, email us with your make and model before ordering and we will check rather than guess.
Yes. Bundle & Save applies automatically in your basket: 5% off when you buy 2 items, 10% off at 3 items and 15% off at 4 or more. It works across the whole range, so you can mix and match, and there is no code to enter.
Yes — you have 30 days from delivery to cancel for any reason, as long as the item is unused and in its original packaging. See our returns policy for the details.
