Daniel Defense Rail Mounted Fixed Front Sight for AR-15
Mix and match across the range: 2 items save 5%, 3 save 10%, 4 or more save 15% on your whole basket.
Fits any MIL-STD-1913 Picatinny rail on AR-15/M4 rifles, including UK straight-pull AR-15 builds, and secures with a slotted fastener into a self-locking stainless steel thread insert. The handguard rail must be at the same height as the receiver rail. Shaped to clear compact weapon lights such as the X300 and TLR-1 mounted forward of it. Its matching rear sight is 19-064-11002; both together are also sold as the Rock & Lock AR-15 Iron Sight Set, 19-088-09116, at a lower combined price.
Not sure it fits your rifle? Ask us before you order

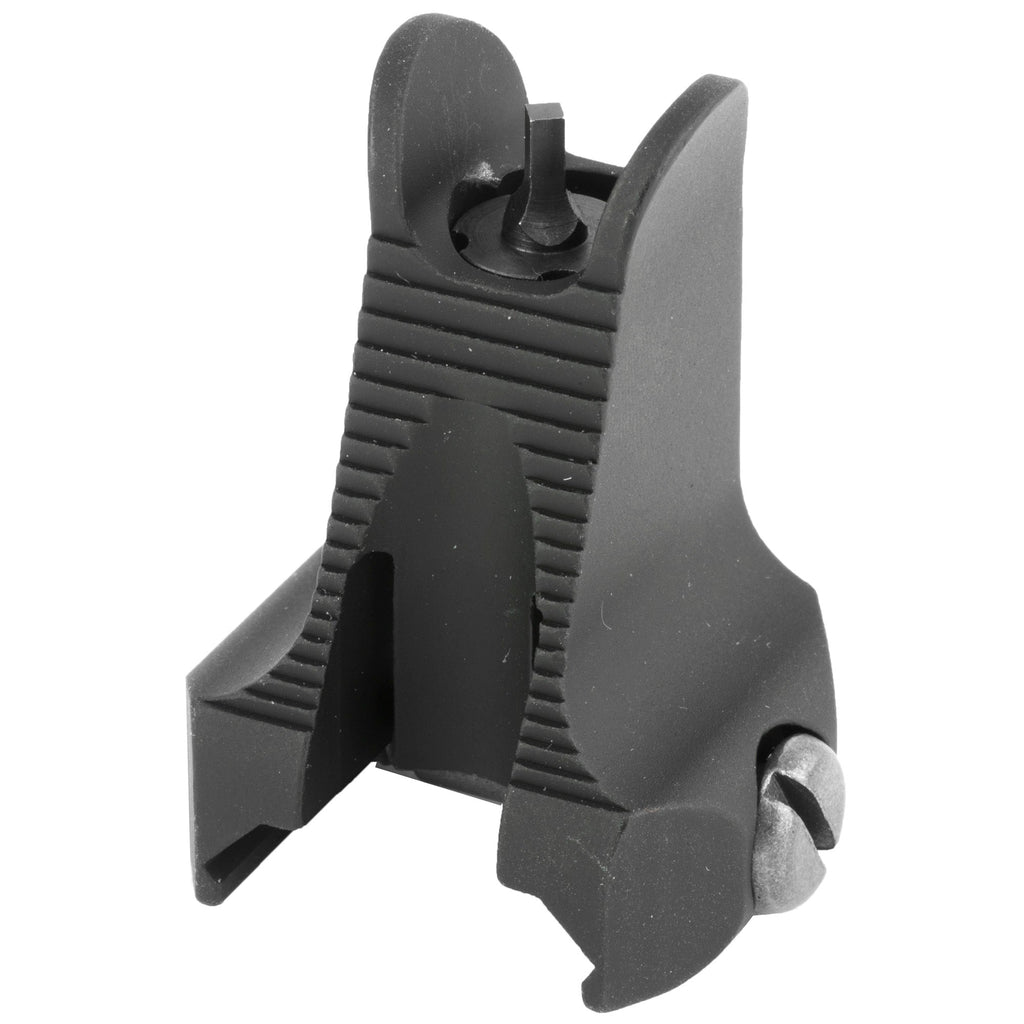

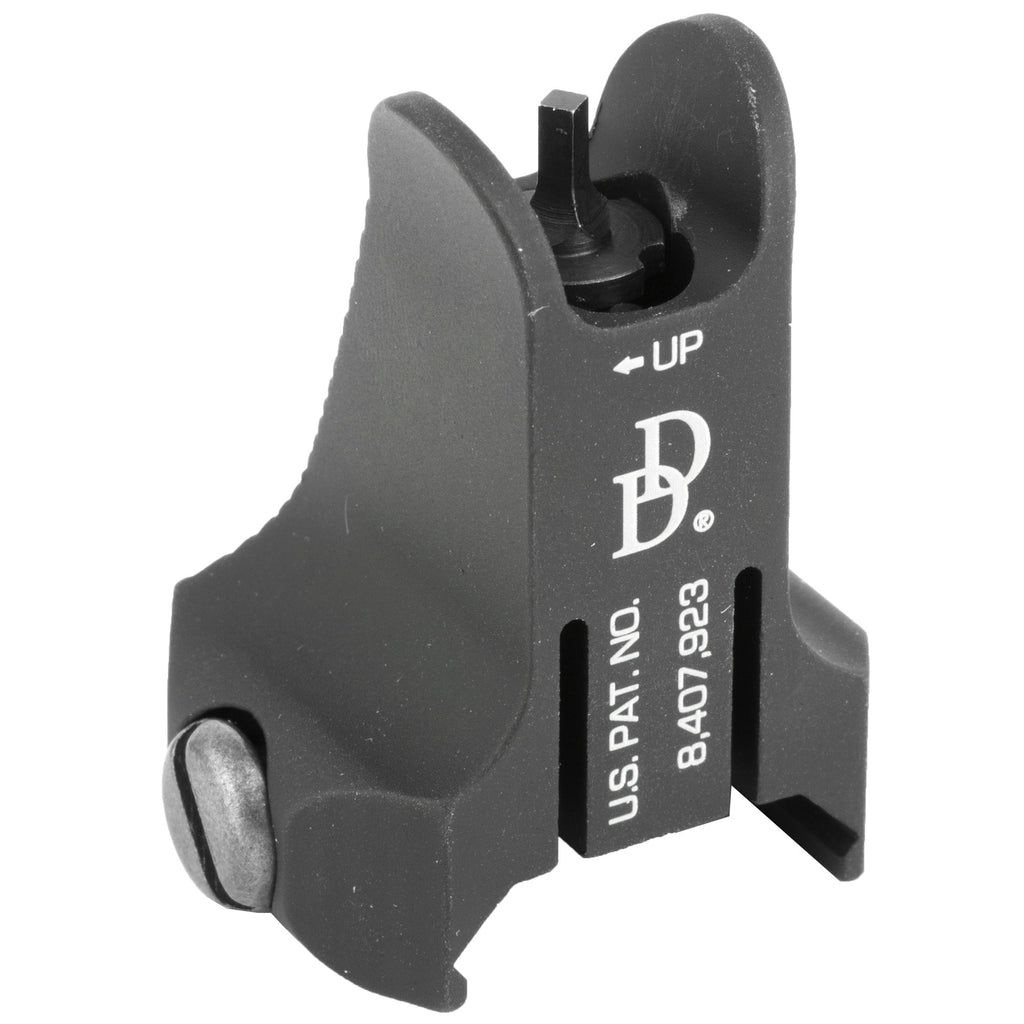

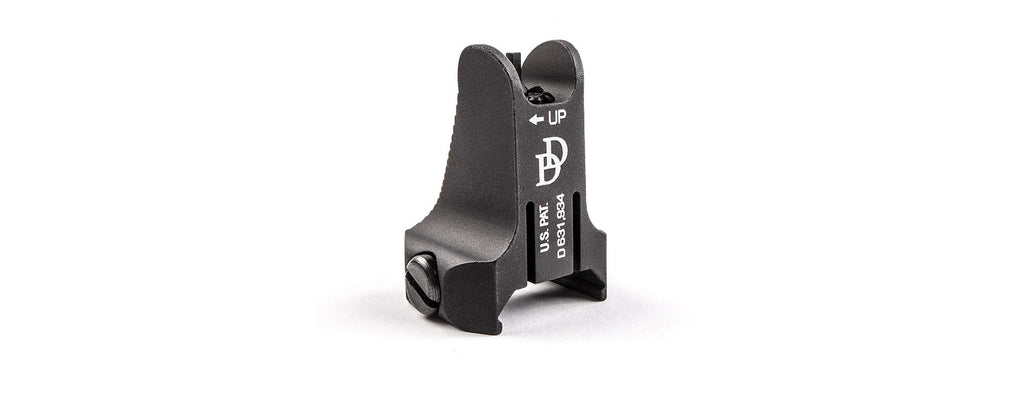

The Daniel Defense Rail Mounted Fixed Front Sight is a fixed front iron sight for AR-15 and M4 rifles, mounting to any MIL-STD-1913 Picatinny rail.
Shaped around the light you already run — the concave radius on each side is a thumb rest, not decoration.
Daniel Defense's own summary is that the lightweight, streamlined design makes this sight unobtrusive and snag-free, and the shaping is deliberate. The design accommodates compact weapon lights such as the X300 and TLR-1 positioned forward of the sight, and the concave radius on either side is described by Daniel Defense as a great place to rest your thumb for easy, ambidextrous activation of the light. A front sight that shares the rail with a light is normally a compromise; this one was drawn with the light in place.
It is one piece, machined from 6061-T6 aluminium with a Military Specification hard anodised finish, and it installs on any MIL-STD-1913 rail using a slotted fastener into a self-locking stainless steel thread insert. It weighs 1.1 oz (31 g), and it is designed to complement the A1.5 Fixed Rear Sight.
On a UK straight-pull AR-15 built for irons, or carrying irons as a backup under a red dot, a fixed front sight has the same appeal it always did: nothing to deploy, nothing to forget.
Fits any MIL-STD-1913 Picatinny rail — the top rail of a quad rail or a rail-topped free-float handguard — on AR-15/M4 rifles including UK straight-pull AR-15 builds, and secures with a slotted fastener into a self-locking stainless steel thread insert. The handguard rail must sit at the same height as the receiver rail, or the front and rear sights will not line up. Its matching rear is the Daniel Defense A1.5 Fixed Rear Sight. If you need both, buy the pair as a set: the Daniel Defense Rock & Lock AR-15 Iron Sight Set contains this front sight and that rear sight, and costs less than buying the two singles. Buy this sight on its own only if you need the front alone.
| Platform | AR-15 / M4 |
|---|---|
| Fits | MIL-STD-1913 Picatinny rail |
| Type | Fixed front iron sight (Rock & Lock®) |
| Material | 6061-T6 aluminium |
| Finish | Military Specification hard anodised |
| Weight | 1.1 oz (31 g) |
| Mount interface | Slotted fastener into a self-locking stainless steel thread insert, on MIL-STD-1913 rail |
| Brand | Daniel Defense |
| MPN | 19-017-04013 |
A front sight that gets on with your light. Order the Daniel Defense Front Sight today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
Explore more: Iron Sights & Backup Sights, AR-15 Parts & Accessories or browse all Daniel Defense.
| Platform | AR-15 / M4 |
|---|---|
| Fits | MIL-STD-1913 Picatinny rail |
| Type | Fixed front iron sight (Rock & Lock®) |
| Material | 6061-T6 aluminium |
| Finish | Military Specification hard anodised |
| Weight | 1.1 oz (31 g) |
| Mount interface | Slotted fastener into a self-locking stainless steel thread insert, on MIL-STD-1913 rail |
| Brand | Daniel Defense |
| MPN | 19-017-04013 |
| Category | Iron Sights |
| Barcode | 852548002172 |
£5 tracked UK delivery on every order via Royal Mail Tracked 24. Our products are ordered in from the manufacturer rather than held in UK stock, so please allow 7 to 10 business days (Monday to Friday, excluding bank holidays) from the date of your order for it to reach you. Tracking details are emailed on dispatch. UK delivery only.
You have 30 days from receiving your order to cancel it for any reason, then 14 days to send it back unused and in its original packaging. Faulty, damaged or incorrect items are replaced or refunded and we cover reasonable return postage. Refunds go back to your original payment method within 14 days of receiving the return.
Yes. This front sight is £99.99 and the matching <a href="/products/daniel-defense-a1-5-fixed-rear-sight">A1.5 Fixed Rear Sight</a> is £149.99, which is £249.99 for the pair. The same two sights bought as the <a href="/products/daniel-defense-ar-15-iron-sight-set-rock-lock">Rock & Lock AR-15 Iron Sight Set</a> are £189.99, so the set saves £60.00. Buy this one on its own only if you need the front sight alone.
That is what it was drawn for. Daniel Defense states the design accommodates compact weapon-lights such as the X300 and TLR-1 positioned forward of the sight, and that the concave radius on either side of the sight is a good place to rest your thumb for easy, ambidextrous activation of the light.
Any MIL-STD-1913 rail, using a slotted fastener into a self-locking stainless steel thread insert. In practice that is the top rail of a quad rail or of a rail-topped free-float handguard. That rail has to sit at the same height as the receiver rail, otherwise the front and rear sights will not line up.
No. It is a fixed, one-piece sight, so there is nothing to deploy and nothing sprung to fail. It is designed to complement the A1.5 Fixed Rear Sight.
Sights are dispatched from the United Kingdom with £5 tracked UK delivery in 7–10 business days, and you'll get tracking by email when it ships. If a part turns out to be the wrong fit, see our returns policy or <a href="/pages/contact">contact us</a> and we'll help sort it.
7 to 10 business days from the date of your order. Every order is sent Royal Mail Tracked for a flat £5 and you receive tracking details by email when it is dispatched.
Yes. We list only genuine parts and optics from the brands shown, ordered in from the manufacturer for your order.
Compatibility notes on this page come from the manufacturer. If you are unsure, email us with your make and model before ordering and we will check rather than guess.
Yes. Bundle & Save applies automatically in your basket: 5% off when you buy 2 items, 10% off at 3 items and 15% off at 4 or more. It works across the whole range, so you can mix and match, and there is no code to enter.
Yes — you have 30 days from delivery to cancel for any reason, as long as the item is unused and in its original packaging. See our returns policy for the details.
